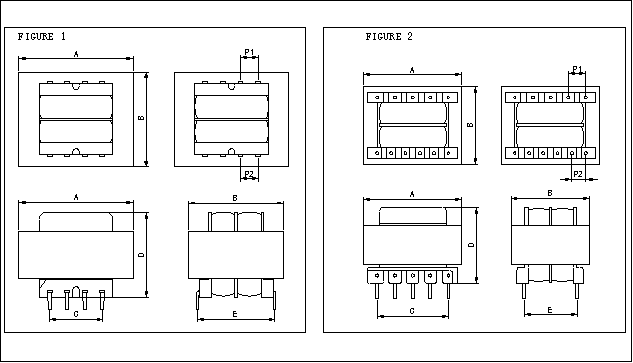

| FIGURG 1 | ||||||||
| SIZE | VA | A | B | C | D | E | P1 | P2 |
| EI35 | 3.0 | 36.0 | 29.5 | 20.0 | 31.0 | 27.0 | 4*6.0 | 4*6.0 |
| EI41 | 6.0 | 42.0 | 33.5 | 20.0 | 33.5 | 28.5 | 4*6.0 | 4*6.0 |
| EI48 | 12.0 | 48.0 | 40.0 | 24.5 | 36.5 | 32.5 | 4*7.5 | 4*7.5 |
| EI57 | 20.0 | 58.0 | 48.0 | 26.5 | 36.5 | 37.5 | 4*8.0 | 4*8.0 |
| FIGURG 2 | ||||||||
| SIZE | VA | A | B | C | D | E | P1 | P2 |
| EI28 | 1.5 | 29.0 | 23.0 | 20.0 | 31.5 | 19.0 | 3*6.0 | 3*6.0 |
| EI35 | 4.0 | 36.0 | 29.5 | 20.0 | 35.5 | 24.0 | 5*5.0 | 5*5.0 |
| EI41 | 8.0 | 42.0 | 33.5 | 22.5 | 39.5 | 22.0 | 3*9.0 | 4*8.5 |
| EI48 | 12.0 | 48.0 | 40.0 | 30.0 | 50.0 | 28.0 | 5*7.5 | 5*7.5 |
| EI57 | 18.0 | 58.0 | 48.0 | 22.5 | 23.5 | 31.5 | 4*7.5 | 6*6.0 |
